Metal Boxes
Sturdy zinc-coated metal boxes with
earthing terminals for secure electrical
switch housing.

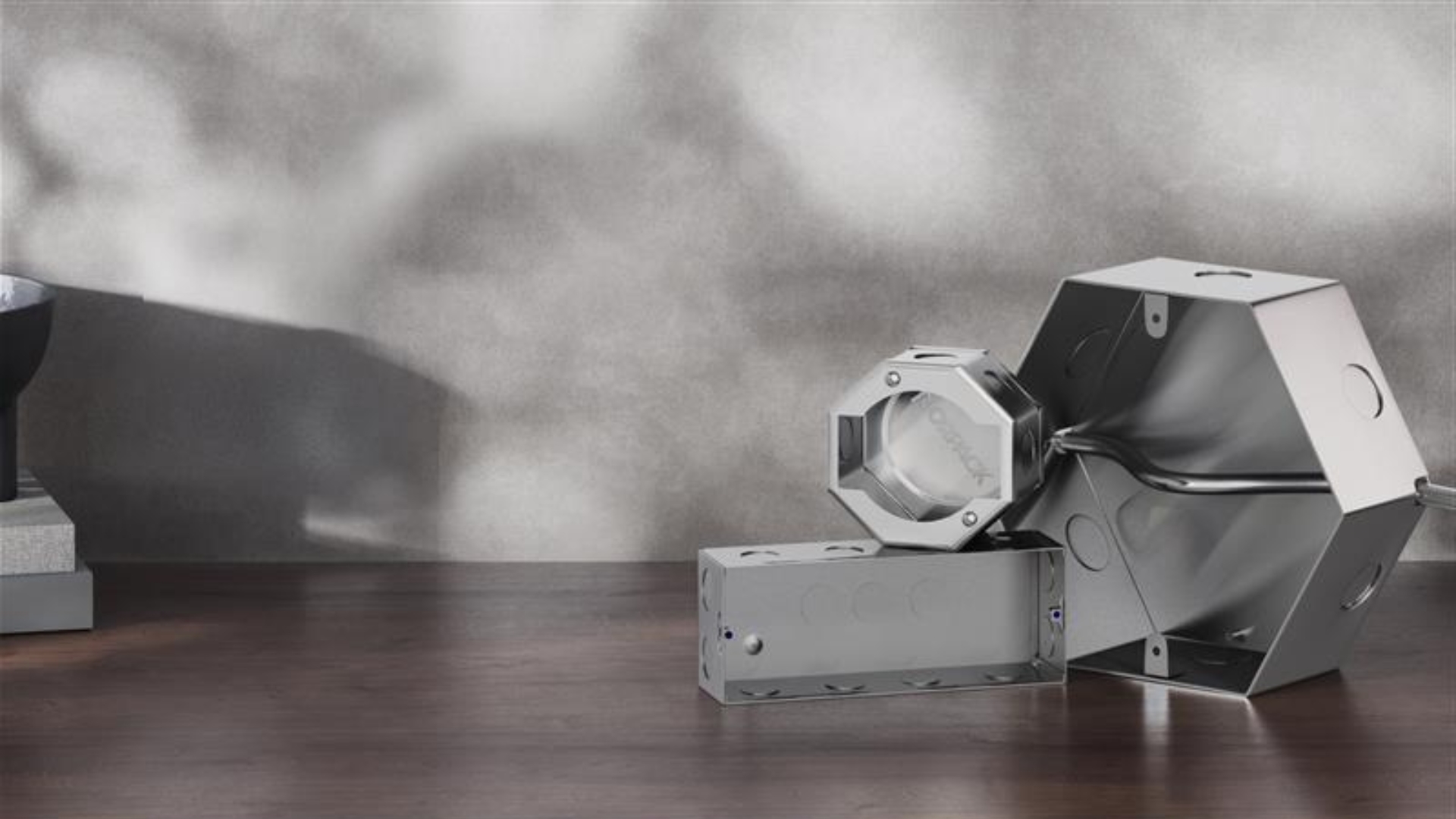

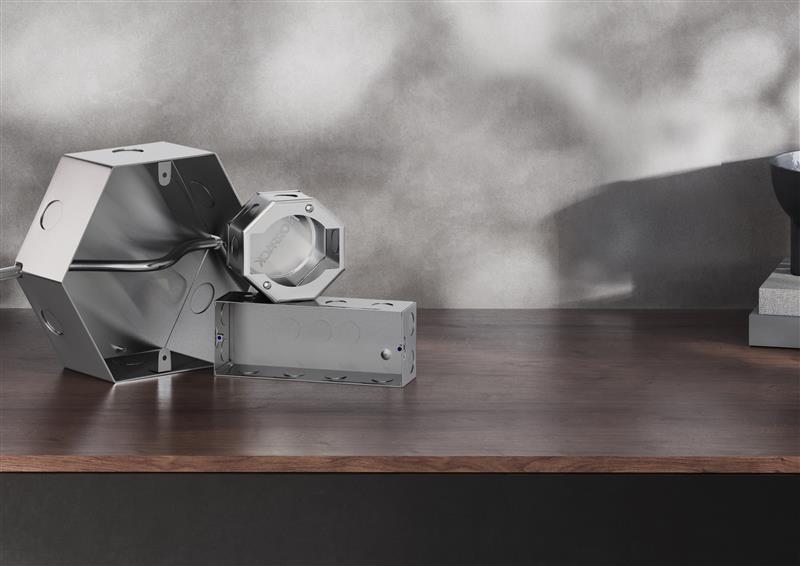

Metal Boxes
In today’s electrical industry, safe and efficient wiring solutions are more important than ever. Norpack offers a comprehensive range of high-quality metal boxes, including Modular Boxes, Fan Boxes, and Concealed Boxes. Expertly engineered, these products deliver robust protection and dependable performance. Designed for seamless integration into concealed wiring systems, they are ideal for a wide variety of installations.

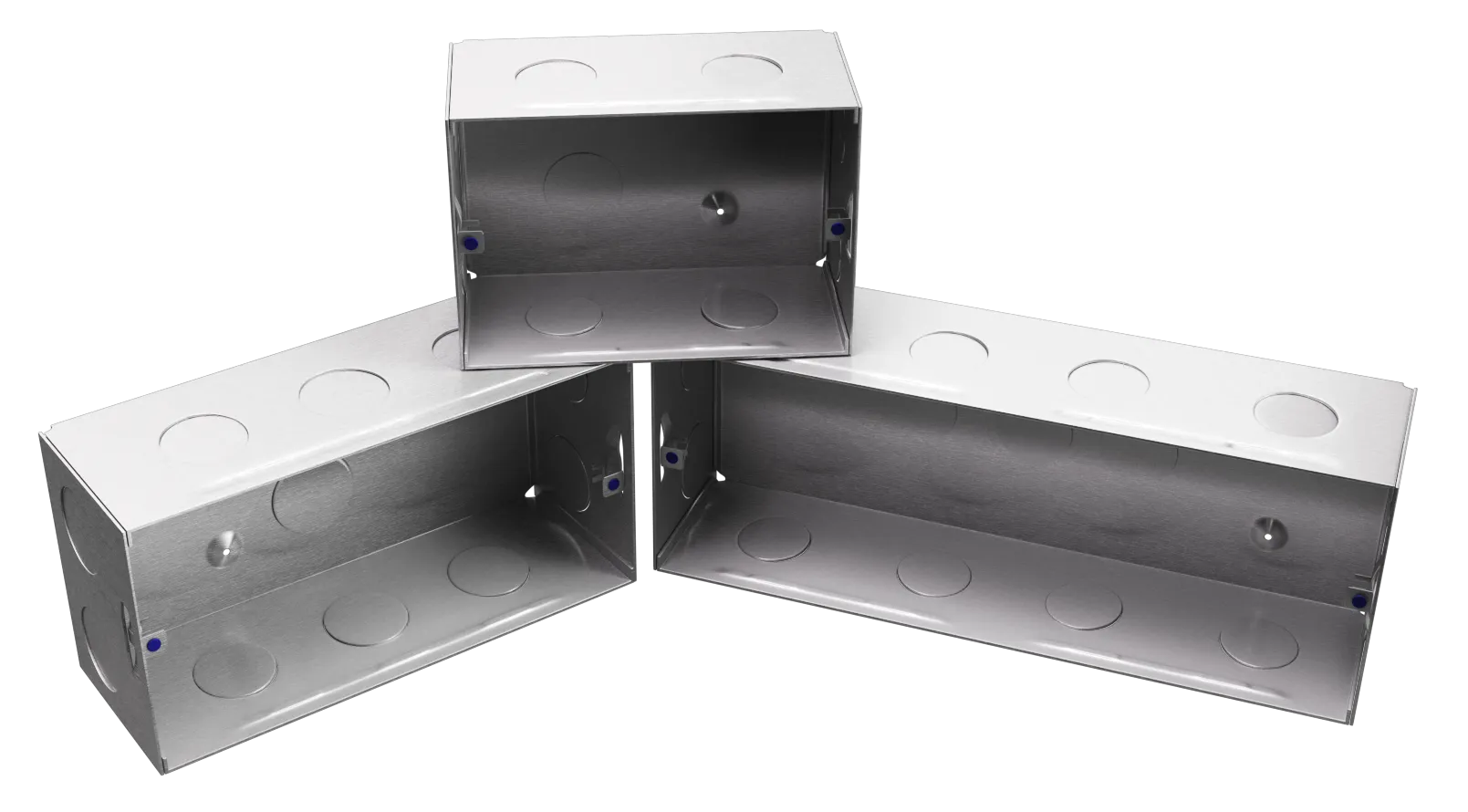

Modular Box
Norpack's Concealed GI Modular Boxes are crafted from pre-galvanized virgin sheets, featuring a robust 120 GSM zinc coating for enhanced corrosion resistance. Each box is equipped with high-quality threads and includes protective tape to safeguard against cement and dust during installation. Designed for safety, these boxes also feature an earthing terminal to provide shock protection. Available in various sizes, they are perfectly suited for all electric modular switches, ensuring a seamless fit and reliable performance in any electrical setup.
Features
High rust and corrosion resistance
120 GSM zink coating
Durable
Easy installation
High cement and dust protection
High shock protection
Application
It houses a variety of electrical fitting
applications and modular switches.
Dimension of Modular Box
| Module | Size(in mm) | Length | Width | Height |
|---|---|---|---|---|
| 1 or 2 Module | 76×76×50 (3×3) | 76.2 | 76.2 | 50 |
| 3 Module | 106×76×50 (4×3) | 107.2 | 76.2 | 50 |
| 4 Module | 136×76×50 (5×3) | 137.2 | 76.2 | 50 |
| 6 Module | 210×76×50 (5×3) | 211.2 | 76.2 | 50 |
| 8 Module Rectangular | 230×78.5×50 (9×3) | 231.2 | 79.7 | 50 |
| 8 Module Square | 136×132×50 (5×5) | 137.2 | 133.2 | 50 |
| 12 Module | 207×132×50 (8×6) | 208.2 | 133.2 | 50 |
| 16 Module | 143×233×50 (9×6) | 144.2 | 234.2 | 50 |
| 18 Module | 204×210×50 (8×8) | 205.2 | 211.2 | 50 |
| S.No. | Product code | Module | ||
|---|---|---|---|---|
| 1.00 mm | 1.20 mm | 1.60 mm | ||
| 1 | NOR7101 | NOR7201 | NOR7301 | 1 or 3 Module |
| 2 | NOR7102 | NOR7202 | NOR7302 | 3 Module |
| 3 | NOR7103 | NOR7203 | NOR7303 | 4 Module |
| 4 | NOR7104 | NOR7204 | NOR7304 | 6 Module |
| 5 | NOR7105 | NOR7205 | NOR7305 | 8 Module Rectangular |
| 6 | NOR7106 | NOR7206 | NOR7306 | 8 Module Square |
| 7 | NOR7107 | NOR7207 | NOR7307 | 12 Module |
| 8 | NOR7108 | NOR7208 | NOR7308 | 16 Module |
| 9 | NOR7109 | NOR7209 | NOR7309 | 18 Module |
Fan Box
Norpack Fan Boxes are specialized electrical enclosures, made from sturdy metal or high-quality materials, providing secure support and protection for ceiling fan wiring. They ensure stable fan installation, electrical safety, and compliance with building standards, essential for both new constructions and renovation projects.
Features
Constructed from sturdy metal or high-quality materials for secure support.
Protects wiring connections from damage and environmental factors.
Ensures stable fan installation.
Contributes to electrical safety and compliance with building standards.
Designed for both new constructions and renovation projects.
Application
Safely mounts and connects ceiling fans and related accessories.
Dimensions of Fan Box
| S.NO | Size | Thickness | Depth | Length of rod | Diameter of rod | Surface inner diameter |
|---|---|---|---|---|---|---|
| 1 | 2 INCH FAN BOX | 0.80 MM | 50 MM | 280 MM | 12 MM | 140 MM |
| 2 | 2.5 INCH FAN BOX | 0.80 MM | 65 MM | 280 MM | 12 MM | 140 MM |
| 3 | 3 INCH FAN BOX | 1.60 MM | 75 MM | 440 MM | 12 MM | 140 MM |

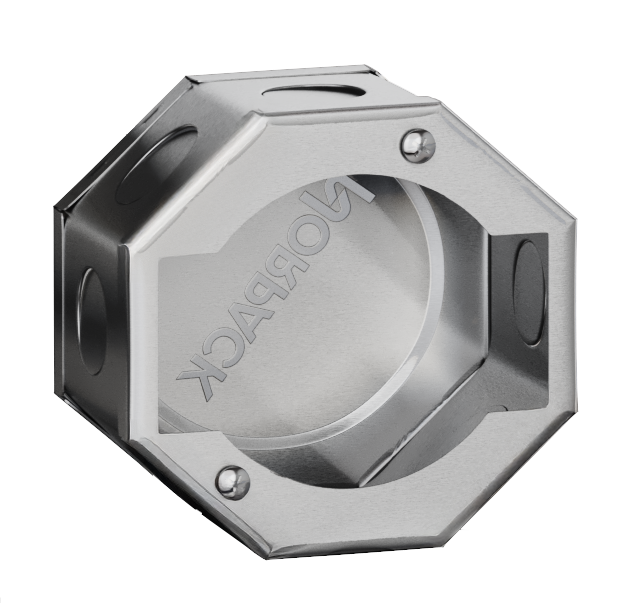

Concealed Box
Concealed boxes are essential components that provide secure housing for electrical connections within ceilings, embedding them into the structure. This protects wiring from physical damage, moisture, and environmental hazards, while maintaining a clean, modern look. Our concealed boxes offer versatile and reliable solutions for diverse electrical installation needs.
Features
Provides secure housing for electrical connections.
Protects wiring from physical damage, moisture, and environmental hazards.
Maintains a clean, modern aesthetic by embedding into the structure.
Offers a versatile and reliable solution.
Tailored to meet diverse electrical installation needs.
Application
Houses electrical connections securely within ceilings.
Dimensions of Concealed Box
| S.NO | Item code | Size | Surface inner diameter | Depth |
|---|---|---|---|---|
| 1 | NOR7401 | 2 INCH CONCELAED BOX | 100 MM | 50 MM |
| 2 | NOR7402 | 2.5 INCH CONCELAED BOX | 100 MM | 65 MM |
| 3 | NOR7403 | 3 INCH CONCELAED BOX | 100 MM | 75 MM |
