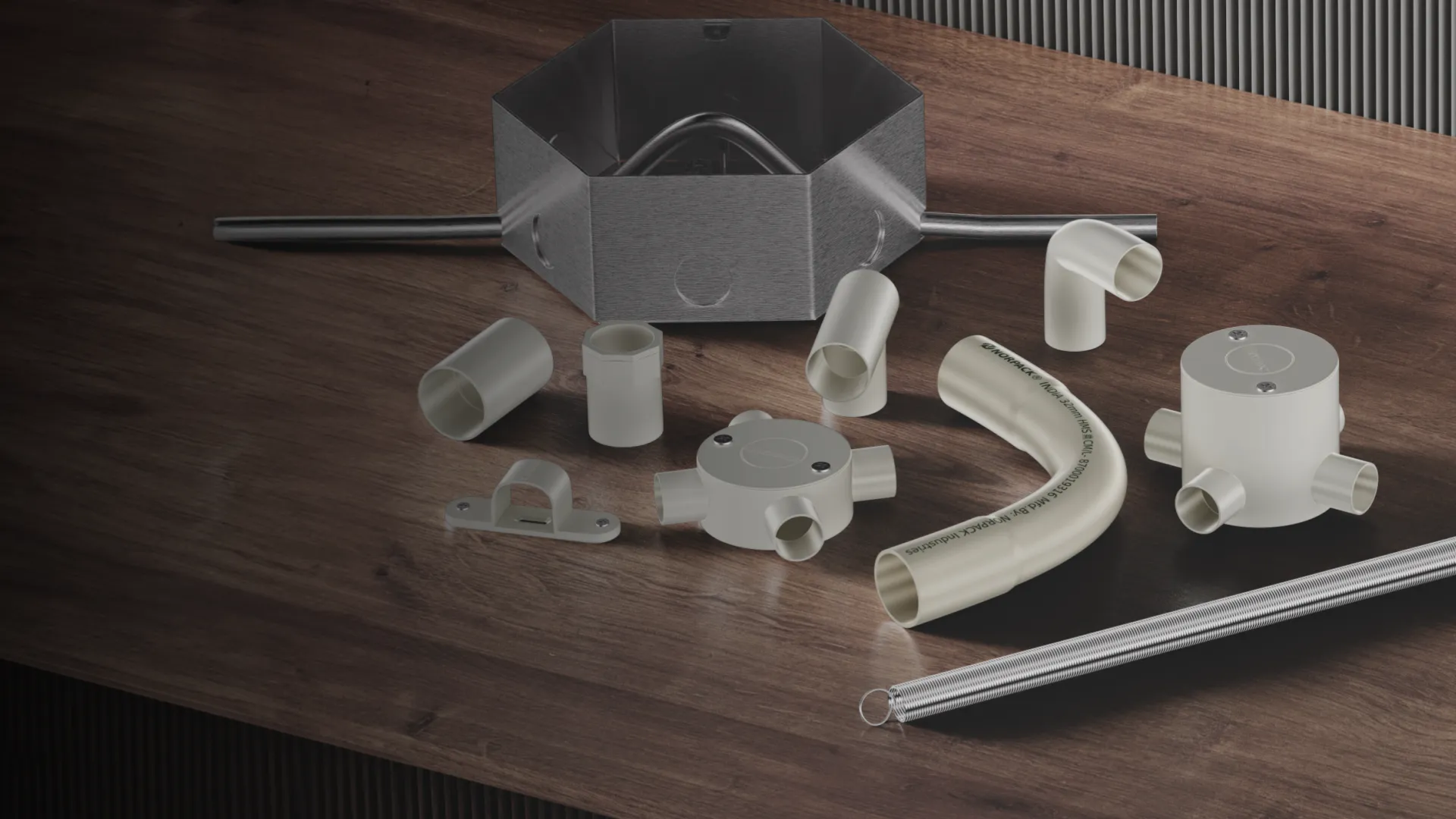

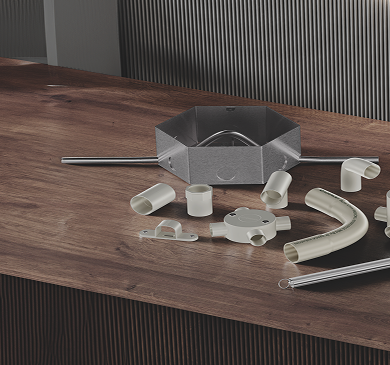

PVC Rigid Conduit Fittings

High-quality PVC fittings ensuring
secure connections and organized
electrical installations.

PVC Rigid Conduit Fittings as per IS 3419 Part 2

Norpack PVC conduit pipe fittings are moulded from high-quality PVC resin. Conduit fittings are used in electrical installations to connect and secure PVC conduit pipes. Conduit pipe fittings are essential in order to ensure proper connection and routing of wires. All our fittings are manufactured as per IS 3419.

Conduit PVC Flexible Pipe

Colors available

Ivory /Black Colour

KNOW MORE

Dimension of PVC Bend

Sizes	Outside diameter	Min. inside diameter (bend)	Inside diameter (collar D3	Radius	Length from center (Y)	Collar length (L2)
20 mm	19.70–20 mm	16.9 mm	20.1–20.3 mm	65 mm	115 mm	35 mm
25 mm	24.7–25 mm	21.3 mm	25.1–25.4 mm	90 mm	160 mm	35 mm
32 mm	31.7–32 mm	27.9 mm	32.1–32.4 mm	125 mm	215 mm	45 mm
40 mm	39.7–40 mm	35.5 mm	40.1–40.5 mm	160 mm	260 mm	45 mm
50 mm	49.7–50 mm	44.7 mm	50.1–50.5 mm	210 mm	310 mm	55 mm

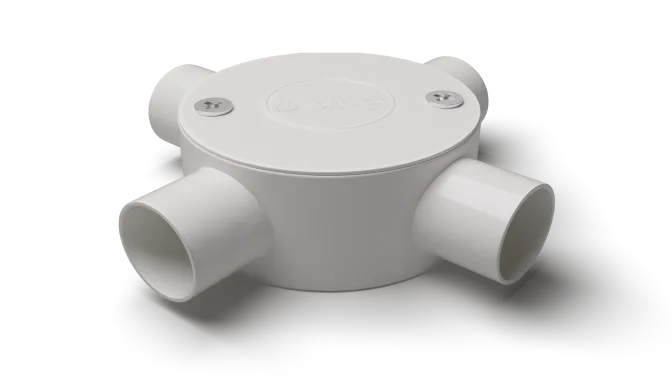

Surface Junction Box/Circular Box

(With screw and lid)

Colors available

Ivory / Black Colour

Dimension of Surface Junction Box

Sizes	Outside diameter	Min. inside diameter (bend)	Inside diameter (collar D3	Radius	Length from center (Y)	Collar length (L2)
20 mm	19.70–20 mm	16.9 mm	20.1–20.3 mm	65 mm	115 mm	35 mm
25 mm	24.7–25 mm	21.3 mm	25.1–25.4 mm	90 mm	160 mm	35 mm
32 mm	31.7–32 mm	27.9 mm	32.1–32.4 mm	125 mm	215 mm	45 mm
40 mm	39.7–40 mm	35.5 mm	40.1–40.5 mm	160 mm	260 mm	45 mm
50 mm	49.7–50 mm	44.7 mm	50.1–50.5 mm	210 mm	310 mm	55 mm

(*Non-ISI)

All Categories

ONE WAY (TERMINAL)

TWO WAY (THROUGH)

TWO WAY (ANGLE)

THREE WAY (TEE)

FOUR WAY (INTERSECTION)

WITH BACK OUTLET

ONE WAY

WITH BACK OUTLET

TWO WAY

WITH BACK OUTLET

THREE WAY

WITH BACK OUTLET

FOUR WAY

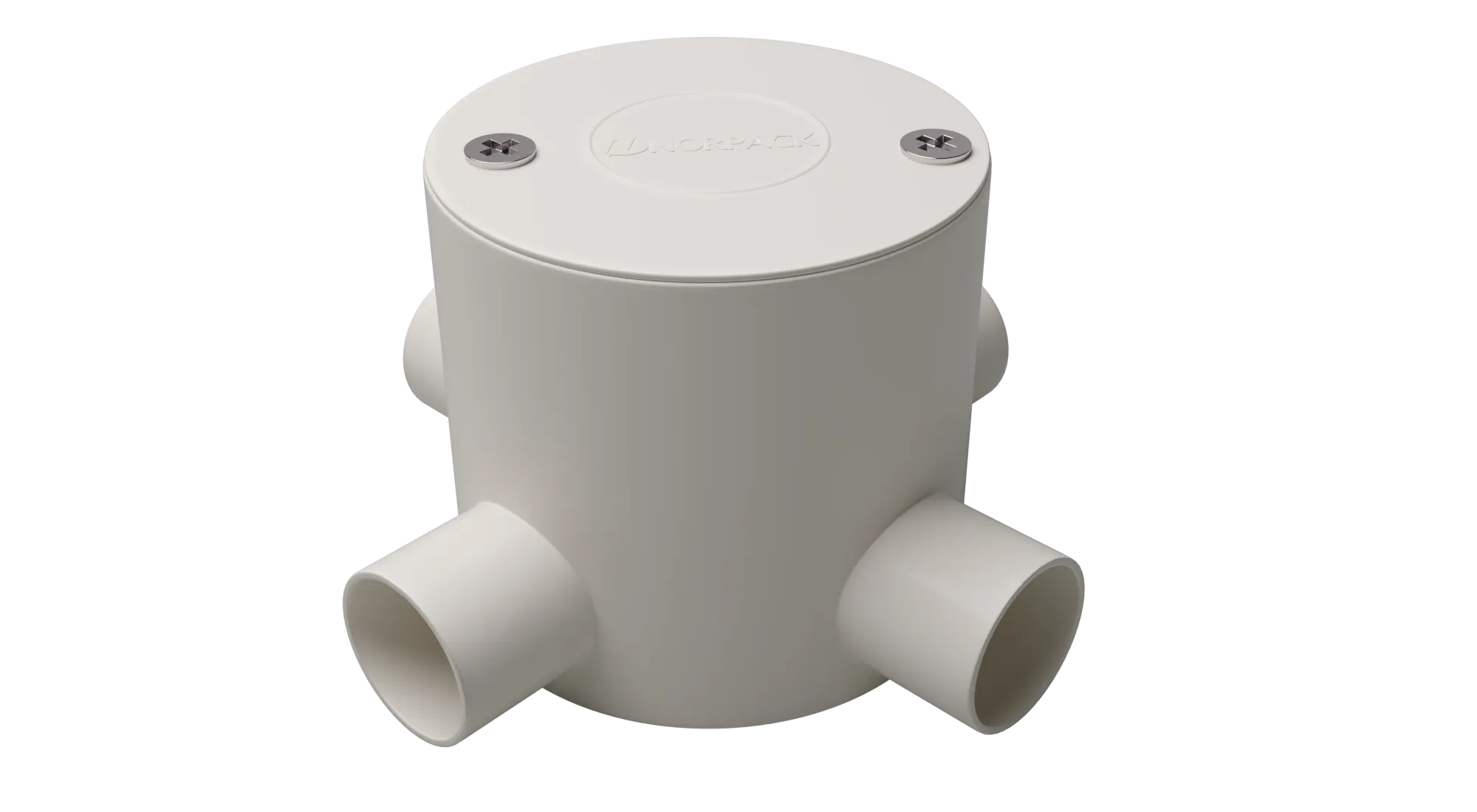

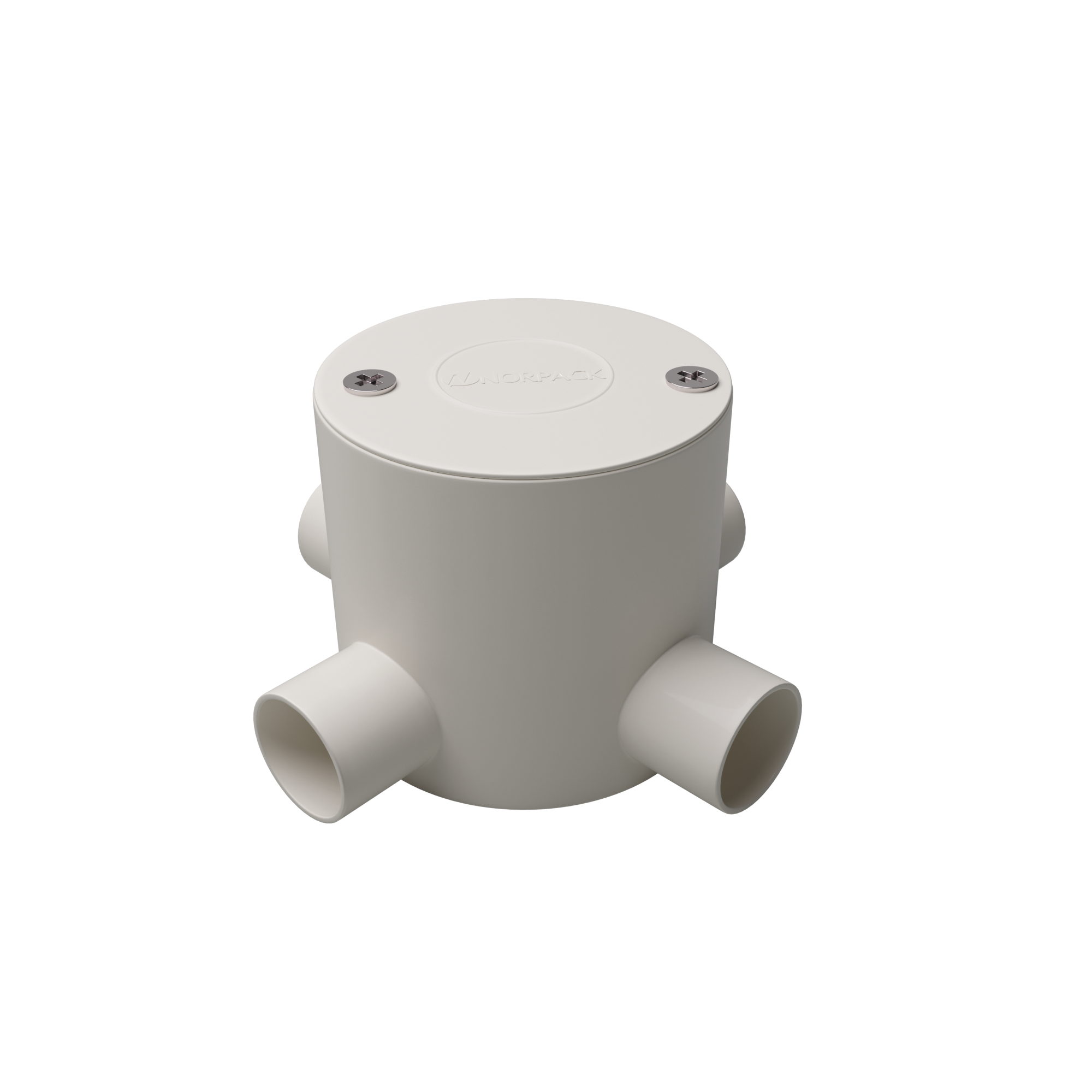

Deep Junction Box / Circular Box

(With screw and lid)

Colors available

Ivory / Black Colour

Dimension of Deep Junction Box

Sizes	Outside diameter of spout (B)	Inside diameter of collar taker (©)	Length of spout (D	Depth of ain cavity (E)	Collar half from bottom(E)	Inner diameter of main cavity (G)	Thickness
20 mm	23 mm	17–17.25 mm	20 mm	65 mm	13.5–14.50 mm	60–61.5 mm	2.00 mm
25 mm	29.5 mm	22.75–23 mm	23 mm	65 mm	16.5–17.5 mm	60–61.5 mm	2.00 mm
*32 mm	36.20 mm	32.20–32.45 mm	25 mm	65 mm	21.5–22.5 mm	60–61.5 mm	2.00 mm

*Non-ISI

All Categories

ONE WAY (TERMINAL)

TWO WAY (THROUGH)

TWO WAY (ANGLE)

THREE WAY (TEE)

Coupler

Colors available

Ivory /Black Colour

Dimension of PVC Coupler

Sizes	Inside diameter of collar	Inside diameter of ridge	Minimum overall length	Minimum wall thickness
20 mm	20.1-20.3 mm	17.5-17.90 mm	100 mm	1.20 mm
25 mm	25.1-25.4 mm	22-22.5 mm	110 mm	1.40 mm
32 mm	32.1-32.4 mm	29-29.5 mm	120 mm	1.50 mm
40 mm	40.1-40.5 mm	37-37.6 mm	130 mm	1.50 mm
50 mm	50.1-50.5 mm	46.4-47 mm	140 mm	1.70 mm
